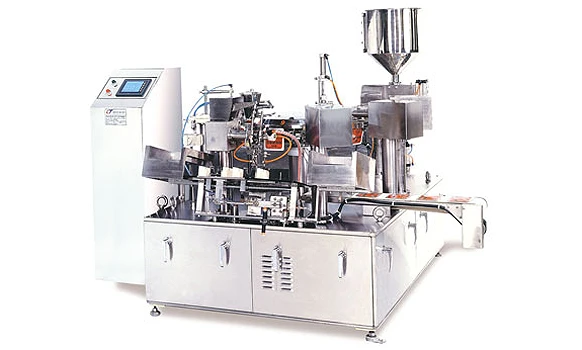

RPA-40A 全自動定量充填包裝機 Fully Auto filling packing machine

<中文介紹>

RPA-40A

主要特點：

RPA-40A機型是專為包裝液體食品、糊狀產品、熱熟食以及固狀混合產品的專業包裝機。主要用於包裝肉類產品、熟食、休閒食品、堅果類、寵物食品、肉湯類、果汁類飲料、濃湯類等產品。PLC人機介面生產，參數易設定，可減少人員培訓時間，操作簡便。整組充填器可以很容易拆下清洗，可透過簡單的調整來做袋子尺寸變更，採用機械凸輪結構設計，動作確實易保養。

標準規格：

包裝速度：每分30 ~ 40袋 (依充填容量，製品黏度等物性有所不同)

充填容量：30g ~ 230g

使用電力：

1.          加熱器AC220V 400W X 4支

2.          馬達AC220V 3相 0.75KW

3.          真空泵浦AC220V 3相 0.75KW

4.          成品輸送機0.06KW

電控箱：PLC人機觸控式面板

空氣消耗量：0.6mpa 300nl/ min

本體重量：約1450Kg

機械尺寸：長2280mm X寬2155mm X高1700mm

備註：客戶須自備壓縮機



<English Introduction>

RPA-40A

Characteristic：

Model RPA-40A is ideal for filling with liquids, paste, hot products and products containing solids. The main applications are meat products; pre-coked meals; snack foods; nuts; Pet foods; meat sauce, fruit juice; soups (including thick soups) ..etc, PLC Human-machine interface, Reduce the basic workers training time by the production parameter adjustable easily, also operation smoothly. The filler is very simple and convenient to strip down and clean up. Bag size can be adjusted with a simple control operation, full set of machine is designed base on the Cam mechanism structure to keeping operation smooth; accurately and maintenance easily.

Specification：

Capacity : 30 ~ 40 bags (per minute, depending on nature of products)

Filling volume : 30 ~ 230g

Power consumption :

1.           Heater - AC220V 400W X 4 sets;

2.           Motor- AC220V, 3 phases 0.75 KW,

3.           Vacuum-Pump AC220V, 3 Phases 0.75 KW,

4.           Product discharge conveyor 0.06KW

Control panel : PLC Human-machine interface

Air consumption : 0.6mpa  300nl /min

Weight : approx. 1450 Kg

Dimensions : 2280mm (L) X 2155mm (W) X 1700mm (H)

The machine exclude Air Compressor to provide!
